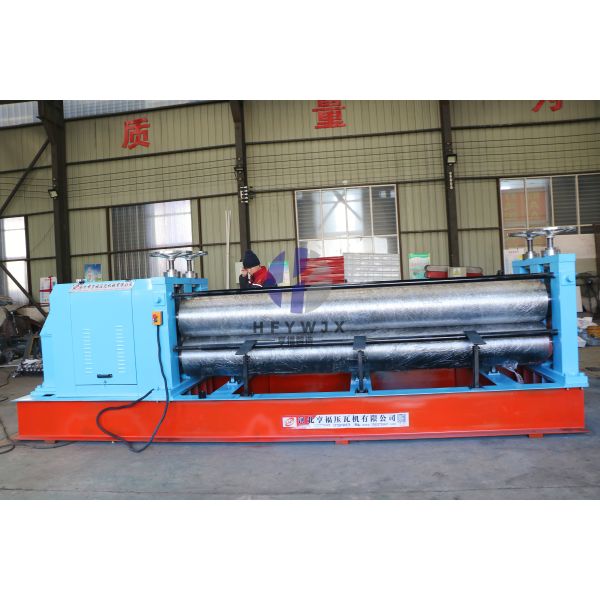

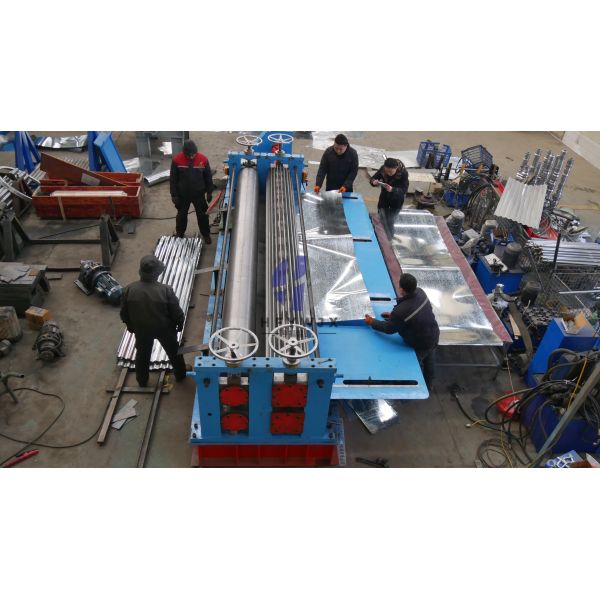

The Horizontal Barrel Corrugated Machine is a fully automatic, PLC-controlled roll forming equipment designed for high-precision processing of thin metal sheets. Manufactured in Cangzhou, Hebei, a renowned industrial base for metal forming machinery, this machine transforms galvanized steel sheets and color steel sheets into high-quality barrel-shaped corrugated panels, delivering stable performance and reliable production for construction applications.
With a rolling width range of 750mm to 1250mm and compatibility with sheet thickness from 0.14mm to 0.3mm, this machine features an 11kw motor, 380V power supply, and chain transmission system. It adopts a welded sheet structure, motor reducer drive, and chrome-plated rollers, ensuring smooth surface molding, preventing scratches during operation, and maintaining consistent product shape and precision.
The fully automatic operation mode greatly improves production efficiency and reduces labor costs, while the PLC control system enables precise parameter adjustment and intelligent continuous production. The chain transmission structure ensures strong load-bearing capacity and long service life, effectively guaranteeing equipment stability, precision, and durability to meet long-term continuous production needs.
The corrugated panels produced are widely used in roofing, wall cladding, and floor decoration for industrial plants, warehouses, prefabricated houses, and commercial buildings. The barrel-shaped corrugated design enhances structural strength and wind resistance while providing excellent decorative effects, making it ideal for modern building envelope systems.
Available in red and blue colors (customizable as required), this machine combines mature production technology with strict quality control. It features easy operation and maintenance, and supports customized adjustments for rolling width, corrugation type, and other parameters to meet diverse production requirements.
Frequently Asked Questions
What are the available cutting methods?
Hydraulic Flying Shear or Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)
Can it be connected to an automatic stacker?
Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.
Can it be integrated into a complete color steel production line?
Yes, it can form a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.
Can a laminating machine be added?
Yes, it allows for an integrated production line combining lamination and forming.
Can the voltage be customized to meet our country's standards?
Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.
