Construction Industry Light Steel Frame Roll Forming Machine 60-27 Model CNC Control

Name: Construction Industry Light Steel Frame Roll Forming Machine 6027 Model CNC Control
Brand: HENGFU
Price: 1 USD

Quality Construction Industry Light Steel Frame Roll Forming Machine 60-27 Model CNC Control for sale

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Certification : CE, SGS

Customized : Customized

Condition : New

Control Type : CNC

Automatic Grade : Automatic

Automaticity : Highly Automatic

Efficiency : Efficient

Accuracy : High Accuracy

Flexibility : Adjustable

Economy : Economy

Security Properties : Stable and Reliable

Transport Package : Plastic Film & Steel Wire Fixed

Specification : 5100mm*900mm*2000mm

Package Size : 510.00cm * 90.00cm * 200.00cm

Package Gross Weight : 7000.000kg

Contact Now

Construction Industry Special 60-27 Light Steel Keel Roll Forming Machine

The 60-27 Light Steel Keel Roll Forming Machine is a specialized production equipment developed for construction and decoration applications, designed for efficient manufacturing of light steel keels.

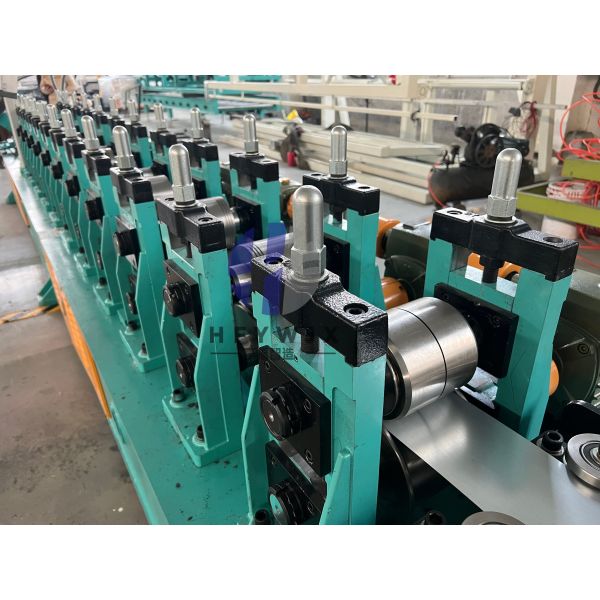

The equipment features an integral welding structure of steel plates with 12 forming passes to ensure stable molding. The shaft is constructed from 40CR material, enhancing overall rigidity and load-bearing capacity for long-term stable operation.

Equipped with a gearbox transmission structure and 7.5kw motor, the machine delivers stable power output with adjustable production speeds ranging from 0-60m/min, enabling high-efficiency continuous production.

The PLC control system, combined with servo motor, slide rail and rack, provides ultra-precise cutting and positioning to meet the high-precision requirements of modern light steel keel production, ensuring product quality stability and consistency.

Technical Specifications

Model NO	60-27 Light Steel Keel Roll Forming Machine
Condition	New
The machine itself	Integral welding of steel plates
Number of molding passes	12
Shaft material	40CR
Transmission structure	Gearbox transmission
Motor	7.5kw
Production speed	0-60m/min
Control system	PLC

Product Gallery

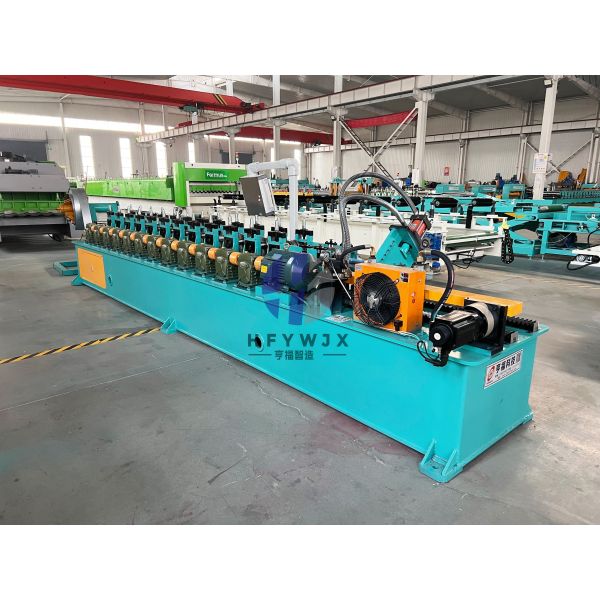

Construction Industry Light Steel Frame Roll Forming Machine 60-27 Model CNC Control

Frequently Asked Questions

Can machines be customized according to our drawings?

Yes. Simply provide the profile cross-section drawings, as well as the required sheet thickness, width, and length range, and we can design a machine model tailored specifically to your needs.

Do you have customers for your equipment in our country?

Yes, we have established customers in the Middle East, North Africa, and various European countries.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you provide semi-automatic or fully automatic receiving tables?

Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.

How can issues such as skewed or off-center sheet feeding be resolved?

The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
