C21 Metal Trapezoidal Standing Seam Roll Former Machine With PLC Control System And 40M/Min Forming Speed

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Model NO : C21 roll forming machine

Certification : CE, SGS

Customized : Customized

Transmission Mode : 1.2inch Chain Drive

Tile Type : Colored Steel

Electronic Control System : PLC

HS Code : 8474801000

Transport Package : Plastic Film & Steel Wire Fixed

Contact Now

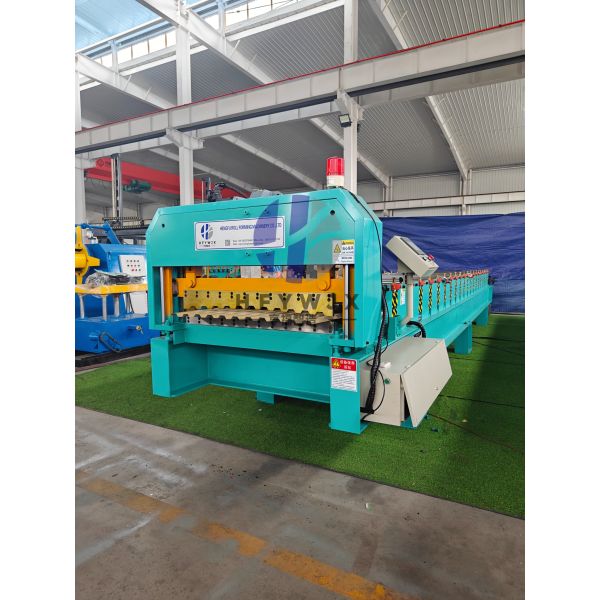

C21 Metal IBR Trapezoidal Standing Seam Roof Panel Roll Forming Machine
Product Overview
The C21 roof sheet roll forming machine is a specialized piece of equipment designed to produce high-quality trapezoidal metal roofing sheets. It is widely used in construction projects including industrial buildings, warehouses, commercial facilities, and residential housing.
This machine processes various raw materials including pre-painted galvanized steel (PPGI), galvanized steel (GI), and aluminum coils. With material thickness compatibility ranging from 0.3 mm to 0.8 mm, it offers exceptional versatility for diverse roofing requirements.
Key Features
  • Fully automated production process with PLC control system
  • High efficiency with forming speeds from 0 to 40 meters per minute
  • Excellent structural strength and effective water drainage
  • Corrosion-resistant, long-service-life finished products
  • Stable performance with low maintenance requirements
  • Modern, clean appearance meeting functional and aesthetic needs
Technical Specifications
Model Number C21
Condition New
Usage Roof
Feeding Width 1250mm
Machine Frame 350H Steel Frame
Forming Speed 0-40 M/min
Type of Driven Chain Drive
Transmission Method Electric
Number of Rolling Mill Sets 23 Row Molding
Spindle Diameter Φ80mm (Solid Shaft)
Feeding Method Double Hand Rocking Feeding Rack (with Pressure Roller)
Specification 11000mm x 1300mm x 1400mm
Origin Cangzhou, Hebei
Warranty 1 Year

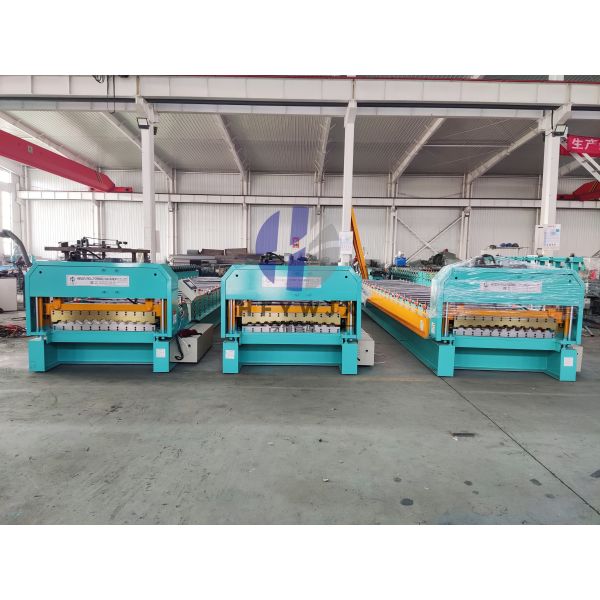

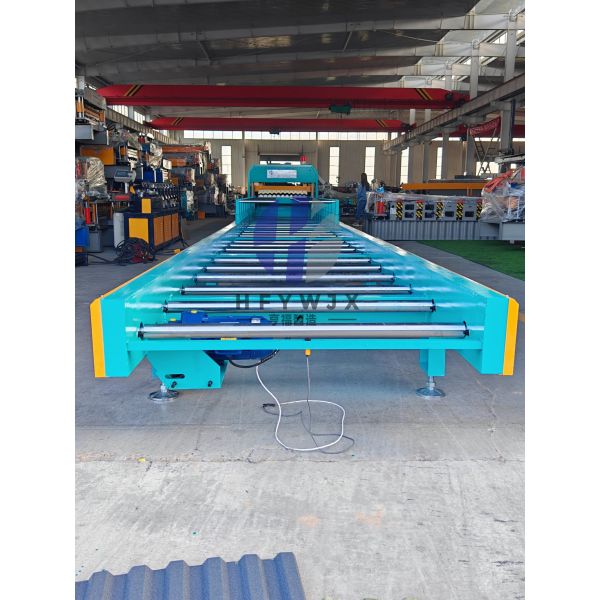

Product Gallery
C21 Metal Trapezoidal Standing Seam Roll Former Machine With PLC Control System And 40M/Min Forming Speed C21 Metal Trapezoidal Standing Seam Roll Former Machine With PLC Control System And 40M/Min Forming Speed C21 Metal Trapezoidal Standing Seam Roll Former Machine With PLC Control System And 40M/Min Forming Speed C21 Metal Trapezoidal Standing Seam Roll Former Machine With PLC Control System And 40M/Min Forming Speed
Frequently Asked Questions
What types of profiles can you produce?
Trapezoidal roof panels, corrugated sheets, floor decking, C/Z-purlins, columns/beams, hoarding panels, standing seam roofing, etc. We can also customize products according to customer drawings.
Can machines be customized according to our drawings?
Yes. Simply provide the profile cross-section drawings, as well as the required sheet thickness, width, and length range, and we can design a machine model tailored specifically to your needs.
What materials is this machine suitable for?
Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
What is the structure of the machine frame?
It features a fully welded steel plate frame, constructed from thickened steel plates that have undergone stress-relieving annealing to ensure they remain free from deformation.
Do you have customers for your equipment in our country?
Yes, we have established customers in the Middle East, North Africa, and various European countries.
