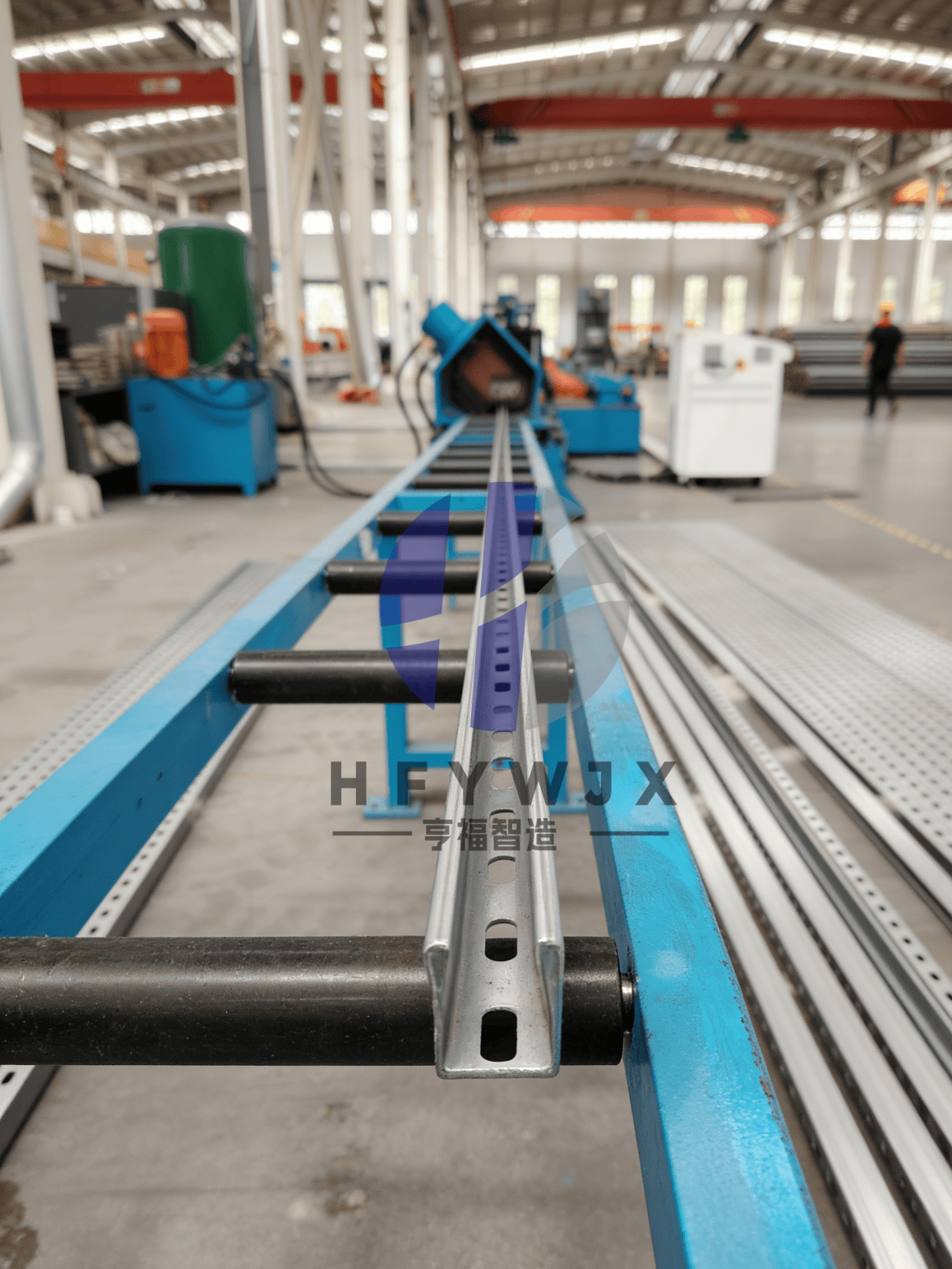

High Precision Photovoltaic Bracket Anti-seismic Bracket Forming Machine
The Photovoltaic and Anti-seismic Bracket Roll Forming Machine is a professional solution for manufacturing high-strength galvanized brackets for solar PV installations and anti-seismic construction projects. It is optimized to process 2.0mm-2.5mm galvanized sheets, producing brackets that offer reliable structural support and meet industry safety standards.
Featuring a box welding frame and 55mm archway-style wall panels, the machine ensures excellent stability under heavy loads. The 24 groups of CR12 rollers, precision-turned and hard chrome-plated, deliver consistent forming results and long service life. The Φ80mm solid spindle, made of tempered 45# steel, provides robust support for high-speed, continuous production.
With gearbox transmission, the machine runs at 8-50m/min, offering flexible speed adjustment for different production needs. It is equipped with an 11kW large valve blade pump station, enabling non-stop hydraulic twisting and shearing. The double-blade cutting mold, made of quenched Cr12 steel (HRC58-60), ensures clean, accurate cuts without burrs.
The machine is controlled by an industrial PLC frequency conversion system, keeping cutting length error within ≤2mm. It includes a touch screen interface, a 55kW variable frequency drive, and a vertical control box with remote control for easy operation. Its compact footprint (2250×1250×1400mm) makes it easy to integrate into existing production lines.
Technical Specifications
| Material |
Galvanized sheet 2.0mm-2.5mm |
| Machine frame |
Box welding frame |
| Wall panel |
T=55mm archway style |
| Number of roller groups |
24 groups of main rollers |
| Roll material |
CR12 precision turning and hard chrome plating |
| Spindle material |
45# high quality steel tempered |
| Spindle diameter |
Φ80mm solid shaft |
| Transmission mode |
Gearbox transmission |
| Production speed |
8m-50m/minute |
| Hydraulic shearing power |
11kw large valve blade pump station |
| Cutting |
Hydraulic twisting and shearing without stopping the machine |
| Cutting mold |
Cut with two blades, Cr12 quenching treatment, HRC58-60 |
| Electronic control system |
Industrial computer PLC frequency conversion control, cutting length error ≤ 2mm 55KW variable frequency touch screen vertical electric control box with remote control |
| Overall dimensions |
Length 2250, width 1250, height 1400 |
Product Gallery
Frequently Asked Questions
What are the available cutting methods?
- Hydraulic Flying Shear
- Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)
Can it be connected to an automatic stacker?
Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.
Can the voltage be customized to meet our country's standards?
Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.
