16 Rows T Profile Roll Forming Machine With PLC Control System Hydraulic Shears

Name: 16 Rows T Profile Roll Forming Machine With PLC Control System Hydraulic Shears
Brand: HENGFU
Price: 1 USD

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Tile Type : Colored Steel

Certification : CE, SGS

Condition : New

Customized : Customized

Usage : Roof

Transmission Method : Electric

Feed Width : 119±5mm

Control System : PLC

Hydraulic Pump Power : 4kw

Transport Package : Plastic Film & Steel Wire Fixed

Specification : 5100mm*900mm*2000mm

Package Size : 510.00cm * 90.00cm * 200.00cm

Package Gross Weight : 2500.000kg

Contact Now

High Precision T-shaped Cold Bending Forming Equipment

Product Overview

The T-Profile Roll Forming Machine is a purpose-built, high-efficiency production device engineered specifically for manufacturing T-shaped metal profiles. These profiles serve as critical components across multiple industries, finding wide application in construction projects, ceiling suspension systems, partition frame installations, door and curtain wall support structures, as well as various architectural and decorative applications.

By integrating advanced cold roll forming technology, the machine delivers exceptional processing precision, resulting in profiles with smooth surface finishes and consistent, uniform shapes that meet stringent industry standards. The combination of precision components and intelligent control not only boosts overall production efficiency but also reduces the need for manual intervention, making the machine a cost-effective solution for large-scale manufacturing.

The machine supports the processing of a broad range of metal materials, including galvanized steel, carbon steel, stainless steel, and aluminum. Each material type can be formed into customized T-profile sizes, allowing manufacturers to tailor the final products to meet specific project requirements.

Technical Specifications

Roll Forming Section
Frame Structure	Precision milling of square boxes
Number of Molding Passes	16 rows
Wall Panel Thickness	20mm
Feed Rack	Two-hand crank feed belt with knife pull
Electrical Control System	Split touchscreen electrical control box with remote control
Screws/Pull Rods	Standard screws, 35 pull rods
Roller Speed	0.5m/min, 4m/min
Forming Rollers	45# steel, rough machining + finish turning + external cylindrical grinding + electroplating, hardness 45-50 HRC
Shearing Device	5.5kW servo electric shear
Hydraulic Pump Power	4KW
Punching Section
Rack	Freestanding rack
Feeding Device	Servo feeding
Feeding Motor Power	1.5 kW servo motor

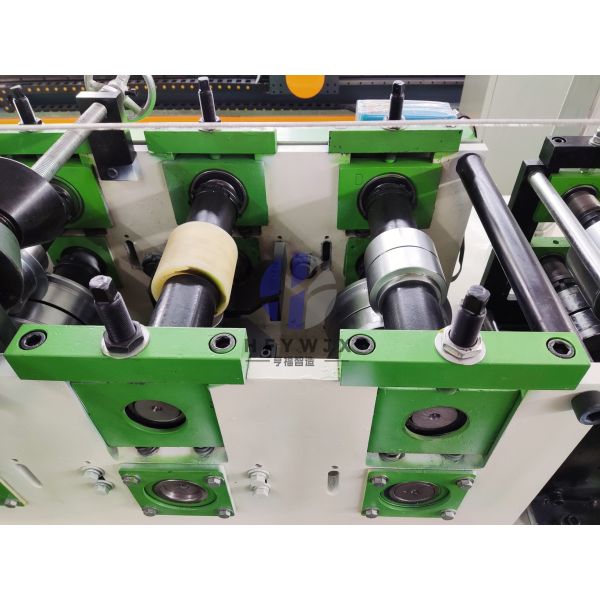

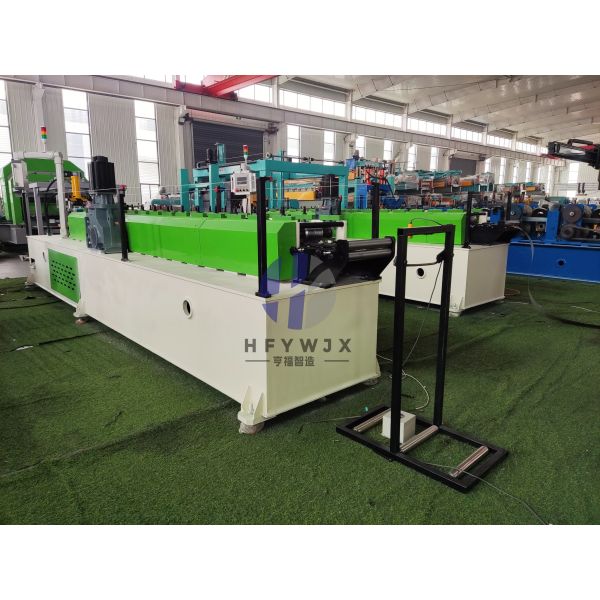

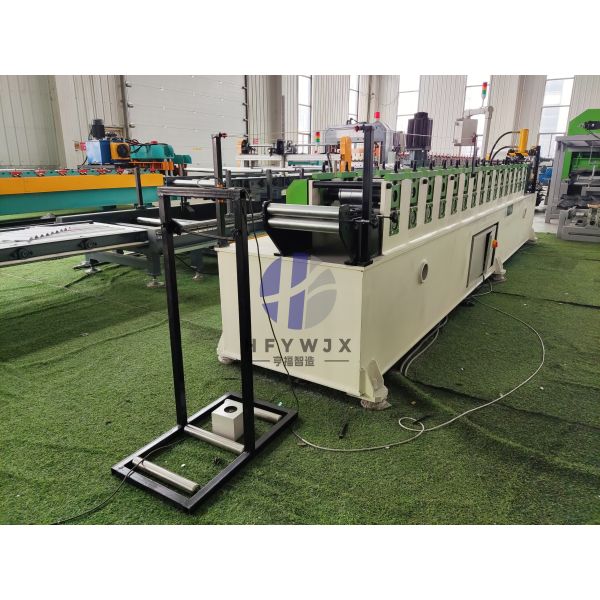

Product Gallery

Frequently Asked Questions

How should the machine be stored when not in use for an extended period?

Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.

How many people are required to operate the machine?

It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.

What materials is this machine suitable for?

Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.

Can you provide semi-automatic or fully automatic receiving tables?

Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.

How can issues such as skewed or off-center sheet feeding be resolved?

The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
